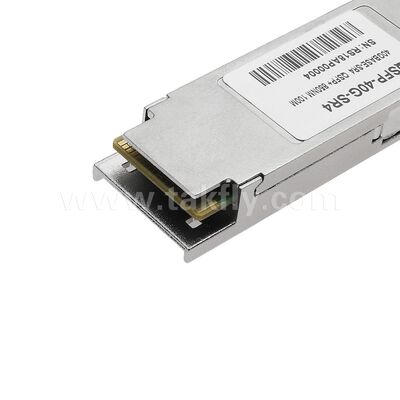

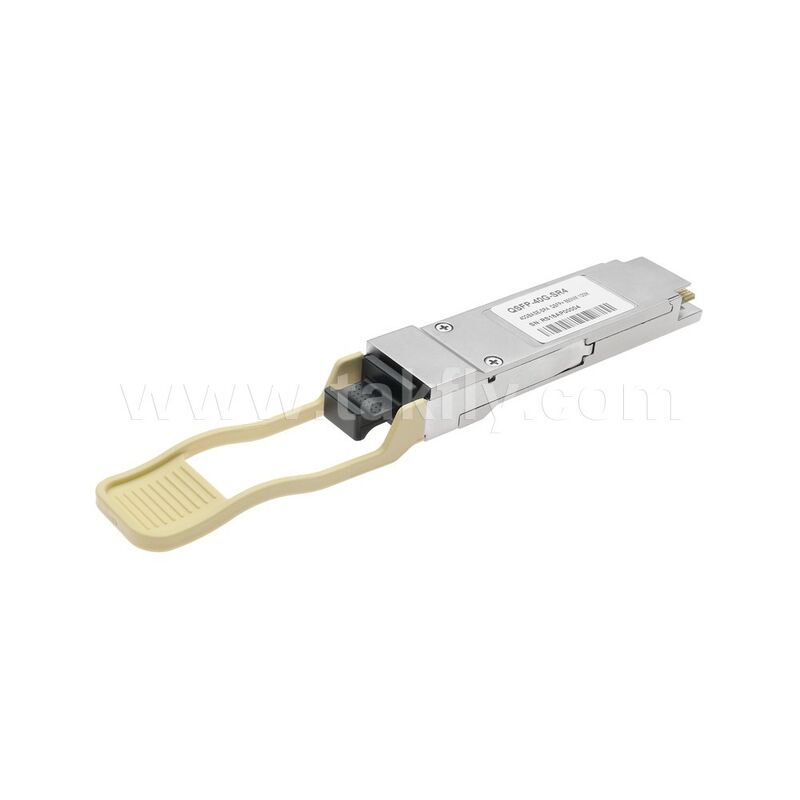

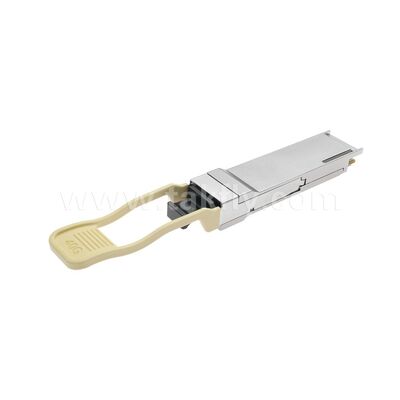

Optical Transceiver Module 40GBASE SR4 850NM QSFP+ for Data Center FTTH FTTX
Produktdetails:
| Herkunftsort: | China |
| Markenname: | OEM |
| Zertifizierung: | ISO, CE RoHS |
| Modellnummer: | TKQSFP-40G-SR4 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | USD21.43-26.58/pc |
| Verpackung Informationen: | Karton |
| Lieferzeit: | 5-8 Werktage |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 50000 Stück pro Monat |
|
Detailinformationen |
|||
| Hervorheben: | 40GBASE SR4 QSFP+ transceiver module,850nm optical transceiver for data center,QSFP+ transceiver module for FTTH FTTX |
||
|---|---|---|---|
Produkt-Beschreibung
Takfly Group QSFP28+ SR4 is a 4-channel, pluggable, parallel, fiber-optic QSFP+ transceiver designed for 40 Gigabit Ethernet, short-range multi-lane data communication and interconnect applications. This module integrates 4 data lanes in each direction, with each lane capable of running at 10.3125 Gbps up to 100 m with OM3 fiber or 150m with OM4 fiber, delivering 40 Gbps total bandwidth.
Operating at a nominal wavelength of 850nm, this transceiver is optimized for multi-mode fiber systems. It features a 38-edge type connector at its electrical interface and a 12-fiber MTP/MPO connector at its optical interface. Utilizing Takfly Group's advanced circuit and Vertical-Cavity Surface-Emitting Laser (VCSEL) technology, this module ensures long life, high performance, and consistent service reliability.
- Four-channel full-duplex transceiver modules
- Transmission data rate up to 10.3Gbit/s per channel
- 4 channels 850nm VCSEL array
- 4 channels PIN photo detector array
- Low power consumption <1.5W
- Housing isolated from connector ground
- Operating case temperature 0°C to +70°C
- 3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
- Maximum link length of 100m on OM3 Multi-mode Fiber (MMF) and 150m on OM4 MMF

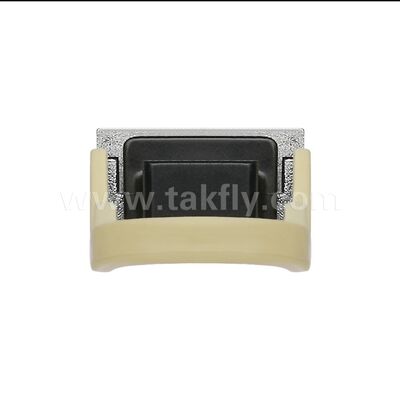

- Single MPO connector receptacle
- Built-in digital diagnostic functions
- 40GBASE-SR4 40G Ethernet
- Datacom/Telecom switch & router connections
- Data Aggregation and Backplane Applications
- Proprietary Protocol and Density Applications
