Simplex Optical Cable 2000M LSZH/PVC/PU
Produktdetails:
| Herkunftsort: | China, Shenzhen |
| Markenname: | DF/OEM/Nuetral |
| Zertifizierung: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Modellnummer: | TK-PC-48F-SC-OS2-50M |
Zahlung und Versand AGB:
| Min Bestellmenge: | Verhandelbar |
|---|---|
| Preis: | negotiable denpend on QTY |
| Verpackung Informationen: | Blisterbox+Karton |
| Lieferzeit: | 5-9 Arbeitstage abhängig von der QTY |
| Zahlungsbedingungen: | Western Union, T/T, MoneyGram/Paypal |
| Versorgungsmaterial-Fähigkeit: | 1000 Prozent/Tag |
|
Detailinformationen |
|||
| Produktname: | Simplexoptisches Kabel | Faserzahl: | 1 |
|---|---|---|---|
| Kernverstärkung: | Aramidgarn | Scheidematerial: | LSZH/PVC |
| Außendurchmesser (Millimeter): | 1.6-3.0mm | Kabelgewicht: | 2,6-7,5 (kg/km) |
| Farbe: | Weiß oder angepasst | Wellenlänge: | 1310nm, 1550nm |
| Durchmesser (±1µm): | 125 μm | Beschichtungsdurchmesser (±5 µm): | 250 μm |
| Betriebstemperatur: | -20 ℃ ~ 70 ℃ | Länge: | 2000 m oder individuell angepasst |
| Fasermarke: | Corning, YOFC, OFS und Draka | ||
| Hervorheben: | Simplex fiber optic cable 2000M,LSZH simplex optical cable,PVC simplex fiber optic cable |
||
Produkt-Beschreibung
Simplex Optical Cable 2000M LSZH/PVC/PU
Simplex cable use Φ600μm or Φ900μm tight buffer fiber as optical communication medium, The tight buffer fiber wrapped with a layer of aramid yarn as strength member units, which is most extruded to produce a layer of (PVC) or low-smoke halogen-free material (LSZH, low-smoke, halogen-free, flame retardant) jacket.
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
- Good performance of flame-retardant, low induced attenuation within the operating temperature range
- Meet various requirements of market and clients
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius(mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |

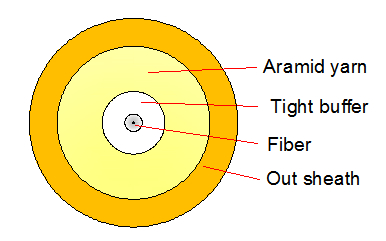

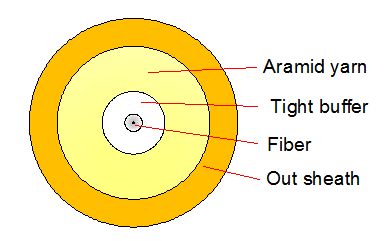

Product Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
