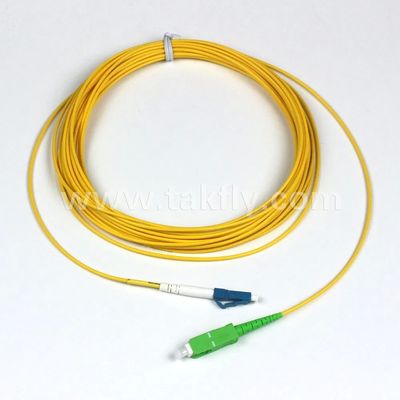

LC/UPC to SC/APC Fiber Optic Patch Cord with 3 Years Warranty 100N Lateral Pressure and >10000N Tensile Strength
Produktübersicht
LC/UPC to SC/APC Customized Optic Equipment Fiber Optic Patch Cord A high-performance fiber optic patch cord designed for connecting devices in signal routing applications, available in both singlemode and multimode configurations. Key Features Low insertion loss and high return loss MT based Multi...
Product Custom Attributes
Modell Nr.:
LC/UPC-Pflasterkabel
Verbindungsstruktur:
Mpo-mpo
Materialform:
Runder Draht
Erlaubte seitliche Druck:
100 (n/100mm) <1000 (N/100 mm)
Erlaubte Zugfestigkeit:
> 10000n
Kern:
Multicore
Scheidematerial:
LSZH, PVC
Fasertyp:
OS1, OS2, OM1, OM2, OM3, OM4
Anschlusstyp:
SC, FC, ST, LC, ODC, IPLC, PDLC, MTRJ, MPO, MTP, MU, SMA
Kabelfarbe:
Gelb, Blau, Grün, Aqua, Rot, Beige, Lila
Einfügedämpfung:
≤ 0,3 dB
Renditeverlust:
≥ 45 dB
Betriebswellenlänge:
1310, 1510 nm
Betriebstemperatur:
-40 ~ 75 ºC
Lagertemperatur:
-45 ~ 85 ºC
Hervorheben:
3 Years Warranty Fiber Optic Patch Cord
,100N Lateral Pressure Fiber Optic Jumper
,>10000N Tensile Strength Fiber Optic Cable
Grundlegende Eigenschaften
Herkunftsort:
Shenzhen, China
Markenname:
OED/ODM
Zertifizierung:
RoHS, CE, Reach
Dokumentieren:
Immobilienhandel
Min Bestellmenge:
10
Preis:
0.45
Verpackung Informationen:
Standardkarton für die Ausfuhr
Lieferzeit:
3-7 Werktage (abhängig von der Menge)
Zahlungsbedingungen:
T/T
Versorgungsmaterial-Fähigkeit:
5000 PCS/Tag
Produkt-Beschreibung
LC/UPC to SC/APC Customized Optic Equipment Fiber Optic Patch Cord
A high-performance fiber optic patch cord designed for connecting devices in signal routing applications, available in both singlemode and multimode configurations.
Key Features
- Low insertion loss and high return loss
- MT based Multi-fiber Connector supporting up to 12 fibers
- Exceptional reliability and stability
- Excellent repeatability and exchangeability
Applications
- Testing equipment
- FTTX+LAN networks
- Optical fiber CATV systems
- Optical communication systems
- Telecommunication infrastructure
Technical Specifications
| Parameter | Unit | FC, SC, LC/ Armoured | ST, MU | MT-RJ, MPO | E2000 |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥45 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ºC | -40~75 | |||
| Storage temperature | ºC | -45~85 | |||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | |||

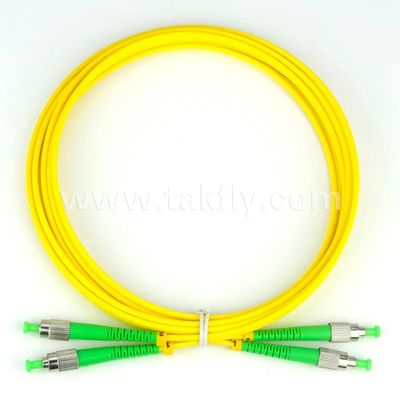

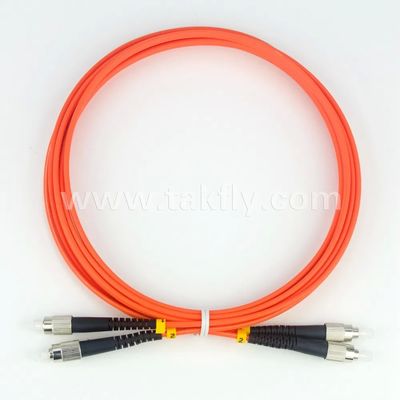

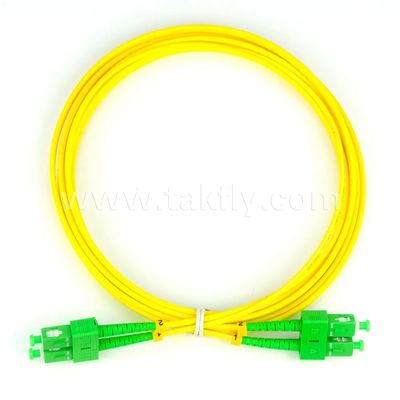

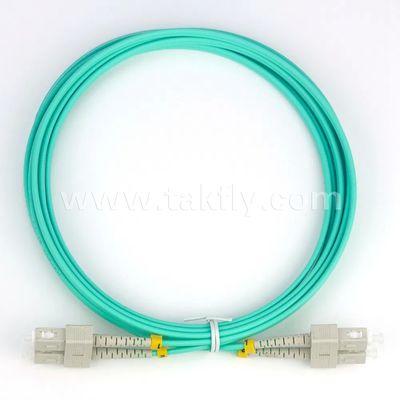

Product Images
