Detailinformationen |
|||
| Fasertyp: | 0,9 mm 2,0 mm 3,0 mm | Faserlänge: | 1m 3m 5m 10m |
|---|---|---|---|
| Stirnfläche: | UPC oder APC | Einfügungsverlust: | <0> |
| Renditeverlust: | ≥ 50 dB | Wiederholbarkeit: | ≤ 0,1 |
| Haltbarkeit: | <0,1 dB Typische Änderung, 1000 Paarung | Austauschbarkeit: | ≤ 0,2 dB |
| Vibration: | ≤ 0,2 dB | Betriebstemperatur: | -20 ° C ~ +70 ° C. |
| Lagertemperatur: | -40°C | +80°C | Kabeldurchmesser: | 30,0 mm, 2,0 mm, 0,9 mm |
| Kabel-Grad: | OFNR-Riser-Klasse | Poliertyp: | PC/UPC/APC |
| Produktionskapazität: | 50000 Stück/Woche | ||
| Hervorheben: | 0.9mm 2.0mm 3.0mm Fiber Type Optical Fibre Patch Cord,1m 3m 5m 10m Fiber Length Optical Fibre Patch Cord,1year to 3 Years Warranty Optical Fibre Patch Cord |
||
Produkt-Beschreibung

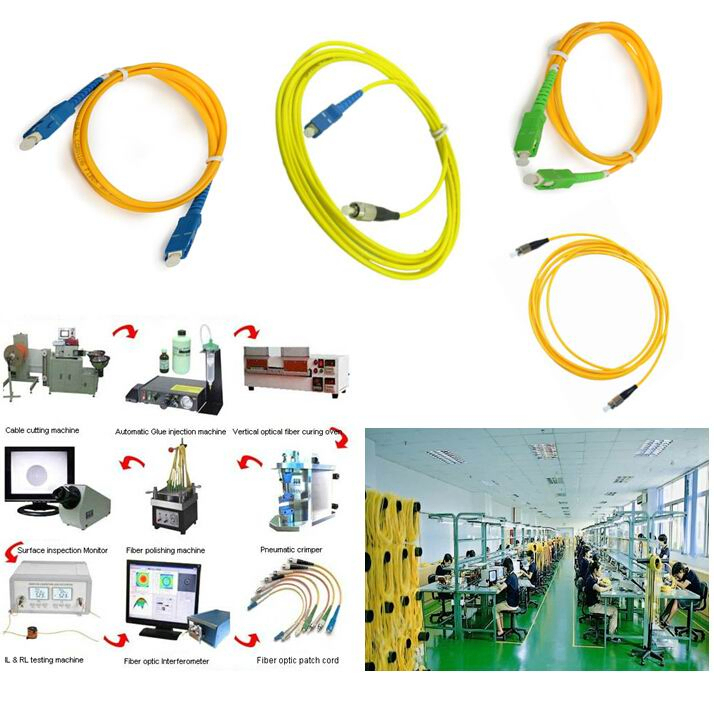

Made in China Optical Fibre Patch Cord
Available in lengths of 1.1m, 3m, 5m, and 10m with 2.2mm or 3mm loose tube options. Features UPC or APC end face configurations.
Ideal for equipment jumper cables, cross connects, and work area connections. All patch cords are manufactured using OFNR riser grade cable and are 100% factory tested to ensure performance to TIA/EIA-568-B-3 standards.
Available in ST/ST, SC/SC, FC/FC, LC/LC and hybrid ST/SC configurations. Offered in both multimode (62.5/125µ M and 50/125µ M) and single mode cable-types, in duplex and simplex versions.
Key Features
- Excellent durability and exchangeability
- High temperature stability
- Low insertion loss and back reflection loss
- Superior Quality Standard PC/UPC/APC Polishing
- Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standards
- Green Production, RoHS compliant
- High stability in various environments
- Custom orders available
Technical Specifications
| Descriptions | SM(PC) | SM(UPC) | SM(APC) | MM(PC) |
|---|---|---|---|---|
| Insertion loss | <0.3dB | ≤0.2dB | <0.3dB | <0.3dB |
| Return loss | ≥50dB | ≥50dB | ≥65dB | ≥35dB |
| Repeatability | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |
| Durability | <0.1dB typical change, 1000 mating | |||
| Interchangeability | ≤0.2dB | |||
| Vibration | ≤0.2dB | |||
| Operating Temperature | -20°C ~ +70°C | |||
| Storage Temperature | -40°C ~ +80°C | |||
| Cable Diameter | 3.0mm, 2.0mm, 0.9mm | |||
