Detailinformationen |
|||
| Erlaubte seitliche Druck: | 100 (n/100mm) | Erlaubte Zugfestigkeit: | <100n |
|---|---|---|---|
| Kern: | Simplex, Duplex, Quard, 12 Kerne | Scheidematerial: | PVC, LSZH, OFNP |
| Verbindungsstruktur: | SC/LC/FC/ST/MU/MTRJ/MPO/E2000 | Materialform: | Ausbruchkabel |
| Einfügungsverlust: | ≤ 0,3 dB (typisch) | Renditeverlust: | ≥ 45 dB |
| Betriebswellenlänge: | 1310, 1510 nm | Austauschbarkeit: | ≤ 0,2 dB |
| Vibration: | ≤ 0,2 dB | Betriebstemperatur: | -40 bis 75 Grad |
| Lagertemperatur: | -45 ~ 85 Grad | Kabeldurchmesser: | φ3.0, φ2.0, φ0,9 mm |
| Faserzahl: | 4, 6, 8, 12, 24 Fasern | ||

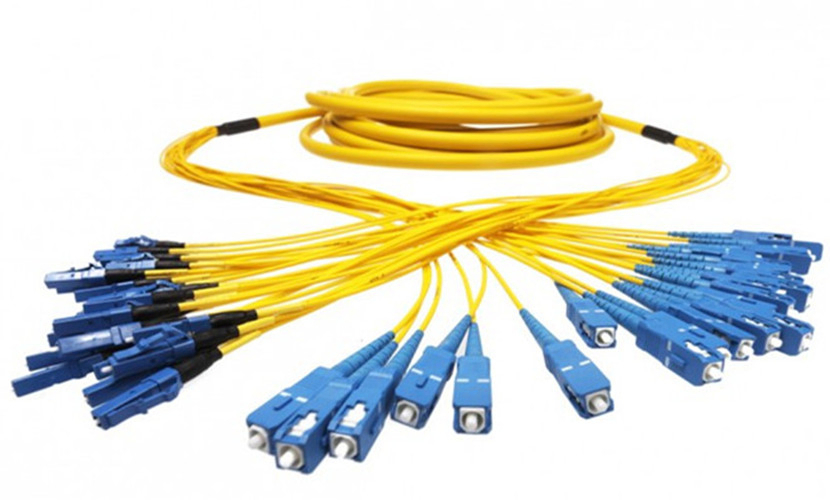

| Hervorheben: | LSZH fiber optic patchcord,12-core breakout fiber cable,SC-LC fiber optic patchcord |
||
Produkt-Beschreibung
Fiber Breakout patch cords consist of multiple fiber cables bundled together, designed for conduit runs, riser and plenum applications. Each fiber is individually reinforced for easy separation into individual lines. Takfly provides high-quality Multi-purpose Breakout patch cords that simplify fiber-optic connector installation. The ruggedized fiber subunits offer protection in demanding environments outside patch panels or ODFs. Available in 2, 4, 6, 8, 12, 24, and 48 fiber configurations.
- Fiber options: 4, 6, 8, 12, 24, 48 fibers
- Includes heat shrinkable tube
- Compatible connectors: FC, SC, ST, LC
- Cable materials: PVC, OM1, OM2, OM3 options
- Single mode or multi mode available
- Cable sizes: Φ0.9mm, Φ2.0mm, Φ3.0mm
- Test equipment
- Optical CATV & LAN
- Telecommunication networks
- Optical communication networks
| Parameter | Unit | SM | PC | UPC | APC |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | |
| Return loss | dB | ≥45 | ≥50 | ≥60 | |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | °C | -40~75 | |||
| Storage temperature | °C | -45~85 | |||
| Cord diameter | mm | φ3.0, φ2.0, φ0.9 | |||
| Fiber count | F | 4, 6, 8, 12, 24 fibers | |||
| Applicable connector | FC, SC, ST, MU, LC |
Takfly Communications Co., Ltd. is a Hi-Tech enterprise specializing in R&D, manufacturing, and sales of fiber optical communications equipment. Our comprehensive product line includes fiber optic patch cords, connectors, adapters, couplers, attenuators, media converters, splice closures, terminal boxes, and ODFs.
- Fast delivery and competitive pricing
- Professional product and technical support
- Prompt response to all inquiries
- Reliable quality with OEM services available
- Long-term warranty coverage
- Value-added logistics and support services
