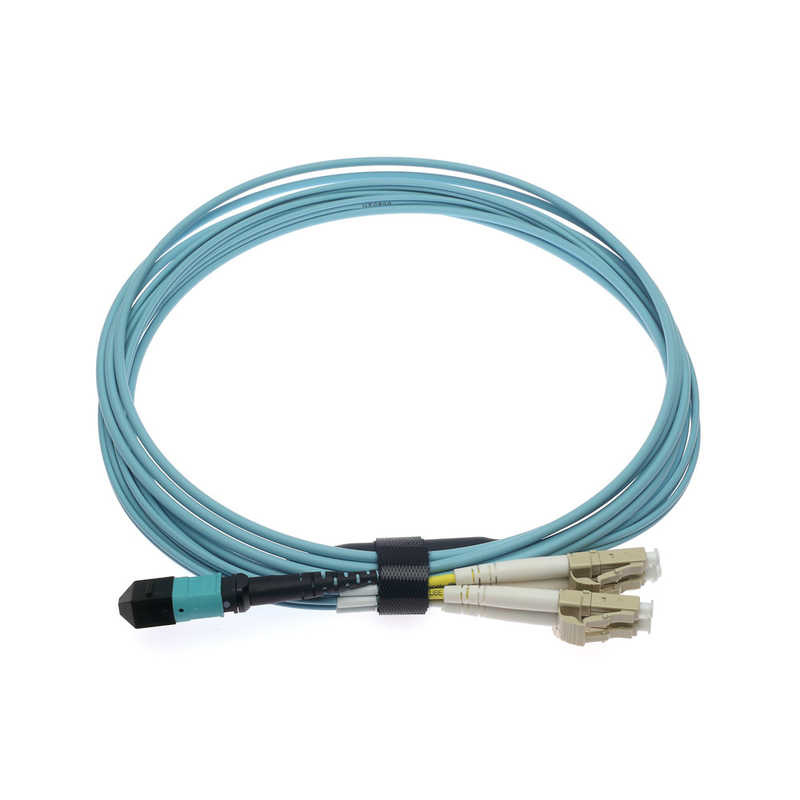

Fiber Diameter 50/125um Repeatability ≤ 0.1dB CPR MPO MTP Polish Type PC/APC
Produktdetails:
| Markenname: | Takfly/DF |
| Zertifizierung: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| Model Number: | TK-MPO-PC |
| Dokumentieren: | MPO-MPO MTP-MTP Patchcord s...1).pdf |
Zahlung und Versand AGB:
| Minimum Order Quantity: | 1 |
|---|---|
| Preis: | 12.68 |
| Packaging Details: | International Export Packing |
| Delivery Time: | 1-3 Working Days( Depends On Quantity) |
| Payment Terms: | TT 100% |
| Supply Ability: | 3000 Pcs/ Day |
|
Detailinformationen |
|||
| Ein anderer Weg: | Erhältlich | Prüfwellenlänge (nm): | SM:1310/1550 MM:850/1300 |
|---|---|---|---|
| Polnischer Typ: | PC/APC | Fasermodus: | Einzelmodus / Mehrmodus |
| Haltbarkeit: | ≤ 0.2dB | Austauschbarkeit: | ≤ 0.2dB |
| Geschlecht: | Männlich (mit PIN) / weiblich (ohne PIN) | Durchmesser der Faser: | 50/125um, 62.5/125um, 9/125um |
| Hervorheben: | CPR MPO MTP,PC/APC MPO MTP,50/125um MPO MTP |
||
Produkt-Beschreibung
Product Description:
The CPR MPO MTP Fiber Optic Trunk Cable is a high-quality solution for data center connectivity, featuring Multi-Fiber Push-On Connectors that ensure reliable and efficient performance. With a focus on durability, this product offers an insertion loss standard of ≤ 0.35/0.7dB (Typical/Max) for the standard version and ≤ 0.2/0.35dB (Typical/Max) for the low-loss variant.
Tested at wavelengths of 1310/1550nm for single mode fiber and 850/1300nm for multi-mode fiber, the MPO MTP cable is designed to meet the demands of various networking environments. It supports different fiber diameters including 50/125um, 62.5/125um, and 9/125um, ensuring compatibility with a wide range of systems.
One of the key features of the MPO MTP Fiber Optic Trunk Cable is its customizable length, allowing users to select the ideal cable size for their specific requirements. Length options range from 1m to 10m, providing flexibility in cable management and installation.
Features:
- MPO MTP Fiber Optic Patchcord
- MPO MTP Fiber Optic Cable
- Multi-Fiber Push On
- Interchangeability: ≤ 0.2dB
- Jacket Od: 3.0mm-4.5mm(double Jacket)
- Repeatability: ≤ 0.1dB
- Other Fanout Way: Available
- Gender: Male( With PIN)/ Female(without PIN)
Technical Parameters:
| Technical Parameter | Description |
|---|---|
| Durability | ≤ 0.2dB |
| Length | Customized (1/2/3/5/7/10m, etc) |
| Repeatability | ≤ 0.1dB |
| Cable Material | LSZH / PVC |
| Jacket Od | 3.0mm-4.5mm (double Jacket) |
| Other Fanout Way | Available |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
| Interchangeability | ≤ 0.2dB |
| Fiber Diameter | 50/125um, 62.5/125um, 9/125um |
| Breakout Length | 0.5M / 1M / 1.5M / Customized |
Applications:
The Takfly/DF TK-MPO-PC Multi-Fiber Termination Push-On Adapter, also known as the Multi-Fiber Push On (MPO) or Multi-Fiber Push On connector, is a versatile and high-quality product originating from China. This product is certified with CE, ROHS, ISO14001, ISO9001, CPR, ANATEL, and REACH, ensuring its adherence to international quality standards.
The TK-MPO-PC is suitable for a wide range of applications and scenarios due to its exceptional attributes. It can be used in data centers, telecommunication networks, and enterprise LANs, among other environments. Its minimum order quantity is 1, and it comes in international export packaging, with a delivery time of 1-3 working days depending on the quantity ordered.
Payment terms for the TK-MPO-PC Multi-Fiber Termination Push-On Adapter are TT 100%, and the supply ability is 3000 pcs per day. This product offers the flexibility of different fanout ways, making it adaptable to various installation requirements.
With support for both single-mode and multi-mode fiber modes, the TK-MPO-PC can accommodate different network configurations. The length of the cables can be customized, with options ranging from 1m to 10m and beyond. The polish type available for this product includes PC and APC, ensuring optimal performance in diverse optical systems.
The repeatability of the TK-MPO-PC is ≤ 0.1dB, guaranteeing consistent and reliable connections. Whether it's for high-density data centers or structured cabling systems, this Multi-Fiber Termination Push-On Adapter offers a dependable solution for various networking needs.
Support and Services:
The MPO MTP product offers comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with product installation, configuration, troubleshooting, and maintenance. We provide product training, documentation, and online resources to help users maximize the benefits of the MPO MTP product.
Packing and Shipping:
Product Name: MPO MTP
Description: High-performance multi-fiber connector for data center applications.
Packaging: The MPO MTP product comes in a sturdy cardboard box to ensure safe transportation.
Shipping: We offer reliable shipping services to ensure the MPO MTP product reaches you in a timely manner.
