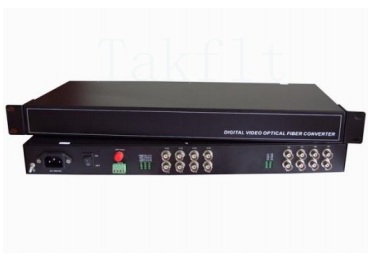

16-Channel Digital Video Optical Converter – 2 Forward Video + 1-2 Reverse RS485/422 Data on Single Fiber, Non-Compressed, Plug & Play for CCTV
Produktdetails:
| Herkunftsort: | Shenzhen und ZhongShan, China |
| Markenname: | DF/OEM/Nuetral |
| Zertifizierung: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Modellnummer: | 16 Kanäle |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | can be negotiated |
| Verpackung Informationen: | Karton |
| Lieferzeit: | 5-9 Werktage abhängig von der Menge |
| Zahlungsbedingungen: | T/T, Western Union, PayPal |
| Versorgungsmaterial-Fähigkeit: | 1000 Stück/Tage |
|
Detailinformationen |
|||
| Hervorheben: | 16-channel digital video optical converter,fiber optic CCTV video converter,RS485 data fiber optic converter |
||
|---|---|---|---|
Produkt-Beschreibung
16-Channel Digital Video Optical Converter
Simultaneous transmission of 2 forward video channels and 1-2 reverse RS485/422 data channels over single fiber with plug-and-play installation for CCTV applications.
Product Overview
This advanced digital video optical converter utilizes all-digital communication technology to transmit 2 forward video channels and 1-2 reverse RS485/422 data channels simultaneously over a single fiber optic cable.
Featuring non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, it delivers broadcast-level image quality for diverse surveillance requirements.
The plug-and-play design enables quick installation without field commissioning, while LED status indicators provide real-time system monitoring. Built-in lightning protection and electromagnetic interference resistance ensure stable operation across various environments.
Key Features
- Fully-digital, non-compressed, broadcast-quality fiber optic transmission
- Wide optical dynamic range - no field adjustment required
- Compatible with PAL, NTSC, SECAM video formats
- RS485/RS422 data communication support
- Three-stage lightning protection design
- Industrial-grade reliability for demanding environments
- Automatic power adjustment and temperature compensation
- Overload protection with auto recovery
- Full Surface Mount Technology (SMT) construction
- Standard 19" 1.2U chassis for easy installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Video Channels | 16 |
| Video Bandwidth | 0 ~ 6.5MHz |
| Sample Rate | 8bit/10bit |
| Signal to Noise Ratio | ≥ 65dB |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.8° (typical) |
| Data Channels | 1 or 2-way |
| Data Interface | RS485/422 (optional) |
| Data Rate | 0 ~ 100Kbps |
| Transmission Wavelength | 1310nm/1550nm |
| Transmission Distance | More than 20KM (single mode) |
| Operating Temperature | -10℃ ~ +55℃ |
| Power Consumption | 2.5W @ DC5V |
| Dimensions | 483mm x 170mm x 55mm |
| MTBF | More than 100,000 hours |
Typical Applications
- Security & Surveillance - Safe city and building security monitoring
- Transportation - Highway and railway remote monitoring systems
- Public Transit - Urban public transport monitoring systems
- Finance - Bank surveillance systems
- Energy & Utilities - Power system remote monitoring
- Industrial - Production process monitoring and management
- Water Management - Flood control and reservoir monitoring
- Aviation - Airport surveillance systems
- Education - Campus and examination room monitoring
- Commercial & Residential - High-rise buildings and smart communities
Model Number Guide
- ① - Video signal channels
- ② - Data signal channels (D: forward, d: reverse)
- ③ - Voice signal channels (A: forward, a: reverse)
- ④ - Switching value channels (K: forward, k: reverse)
- ⑤ - Ethernet interface
- ⑥ - Telephone interface
- ⑦ - SM: Single-mode, MM: Multi-mode
- ⑧ - Optical interface (FC/SC optional)
- ⑨ - C: Chassis card type, E: Independent type
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Manufacturing Excellence
- Experienced Assembly Team: 80+ assembly workers with 6+ years of experience
- Strong R&D Capability: 10+ R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and production lines
- Comprehensive Testing Facilities: 30+ sets of testing instruments including OTDR, ILD, VFL, RL, IL testers
- OEM Branding Accepted - Custom logo/branding available
Quality Control Process
- Incoming inspection: Raw materials spot check
- In-process inspection: Full inspection at each process
- Pre-packaging inspection: Finished products full inspection
- Pre-shipping inspection: Final spot check before shipping
Industry Participation
Active participation in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and Source Electronics Exhibition.
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available
