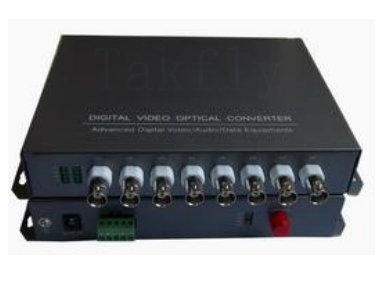

8-Channel Digital Video Optical Converter – Cost-Effective, Long-Distance, Non-Compressed Video with RS485 Data over Single Fiber
Produktdetails:
| Herkunftsort: | Shenzhen und ZhongShan, China |
| Markenname: | DF/OEM/Nuetral |
| Zertifizierung: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Modellnummer: | 8 Kanal |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | can be negotiated |
| Verpackung Informationen: | Karton |
| Lieferzeit: | 5-9 Werktage abhängig von der Menge |
| Zahlungsbedingungen: | T/T, Western Union, PayPal |
| Versorgungsmaterial-Fähigkeit: | 1000 Stück/Tage |
|
Detailinformationen |
|||
| Hervorheben: | 8-channel digital optical converter,fiber optic video converter RS485,long-distance non-compressed video converter |
||
|---|---|---|---|
Produkt-Beschreibung
8-Channel Digital Video Optical Converter
Cost-effective, long-distance, non-compressed video transmission with RS485 data over single fiber optic cable.
Product Overview
This advanced digital video optical converter utilizes all-digital communication technology to simultaneously transmit 2 forward video channels and 1 or 2 reverse RS485/422 data channels over a single fiber. Featuring non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, it delivers broadcast-level image quality for diverse application requirements.
The plug-and-play design enables quick installation without field commissioning, ensuring stable operation across various environments. LED status indicators provide real-time monitoring of system parameters, while built-in lightning protection and electromagnetic interference resistance enhance equipment reliability.
Key Features
- Fully-digital, non-compressed, broadcast-quality fiber optic transmission
- Wide optical dynamic range - no field adjustment required
- Compatible with PAL, NTSC, SECAM, and other video transmission formats
- RS232 / RS485 / RS422 data communication support
- Three-stage lightning protection design
- Industrial-grade design with high reliability for demanding environments
- Automatic power adjustment and automatic temperature compensation circuit; overload protection with auto recovery
- Full Surface Mount Technology (SMT) for improved reliability
- Monitoring client - standard 19" 4U chassis supports up to 8 cards; network card can be added for centralized management
- Remote optical transceiver - compact desktop chassis design with wall-mount option
Technical Performance Specifications
Video Performance
| Video Channels | 8 |
| Video Bandwidth | 0 ~ 6.5MHz |
| Sample Rate | 8bit/10bit |
| Signal to Noise Ratio | ≥ 65dB |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.8° (typical) |
| Vertical Tilt | <0.5% (max) |
| Input/Output Impedance | 75Ω (unbalanced) |
| Input/Output Level | 1.0Vpp (typical) |
| Signal System | PAL / NTSC / SECAM |
Data Performance
| Data Channels | 1 or 2-way |
| Data Interface | RS485/422 (optional) |
| Physical Interface | Five industrial terminal |
| Data Rate | 0 ~ 100Kbps |
| Bit Error Rate (BER) | <10E-12 |
Optical Performance
| Transmission Wavelength | 1310nm/1550nm |
| Optical Interface | FC / PC |
| Transmit Optical Power | -8dB |
| Receiver Sensitivity | -25dB |
| Optical Dynamic Range | 17dB |
| Maximum Optical Loss | 14dB |
| Transmission Distance | More than 20KM (single) |
General Specifications
| Operating Temperature | -10℃ ~ +55℃ |
| Humidity | 0 ~ 95% (no condensation) |
| Power Consumption | 2.5W @ DC5V |
| Dimensions | 483mm (L) x 170mm (W) x 55mm (H) |
| Weight | 6.0kg |
| MTBF | More than 100,000 hours |
Typical Applications
- Security & Surveillance - Safe city and building security monitoring
- Transportation - Highway and railway remote monitoring systems
- Public Transit - Urban public transport monitoring systems
- Public Safety - Remote monitoring for operator facilities
- Finance - Bank surveillance systems
- Energy & Utilities - Power system remote monitoring
- Industrial - Industrial and mining production process monitoring
- Water Management - Flood control and reservoir site monitoring
- Aviation - Airport surveillance
- Media - Radio and television image transmission
- Education - School campus and examination room monitoring
- Commercial & Residential - High-rise buildings, intelligent buildings, smart communities
- Logistics - Customs barriers and warehouse video surveillance
- Petrochemical - Petrochemical facility monitoring
- Correctional - Video surveillance systems
- Government - Surveillance and alarm systems for government facilities
- Command & Control - Command and control position visualization
- Emergency Services - Forest fire command systems
Model Numbering System
Model Code Explanation:
① Number for video signal
② Number for data signal, D is forward data, d is Reverse data
③ Number for voice signal, A is forward voice, a is reverse voice
④ Number for switching value, K is forward switching value, k is reverse switching value
⑤ E is Ethernet interface
⑥ T is telephone interface
⑦ SM is single mode, MM is multimode
⑧ FC, SC Optical interface for optional
⑨ C is chassis card type, E is independent
① Number for video signal
② Number for data signal, D is forward data, d is Reverse data
③ Number for voice signal, A is forward voice, a is reverse voice
④ Number for switching value, K is forward switching value, k is reverse switching value
⑤ E is Ethernet interface
⑥ T is telephone interface
⑦ SM is single mode, MM is multimode
⑧ FC, SC Optical interface for optional
⑨ C is chassis card type, E is independent
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Branding Accepted - Custom logo/branding available
Quality Control Process
Incoming inspection: Spot check of raw materials before production
In-process inspection: Full inspection at every individual process completion
Pre-packaging inspection: Full inspection of finished products before packing
Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China Electronics Exhibition, and more.
Delivery Information
Samples: 1-3 working days
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton, and pallet options available according to your requirements
