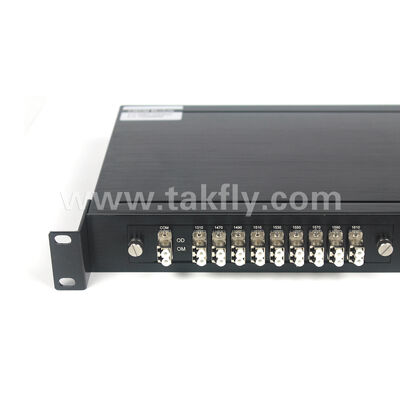

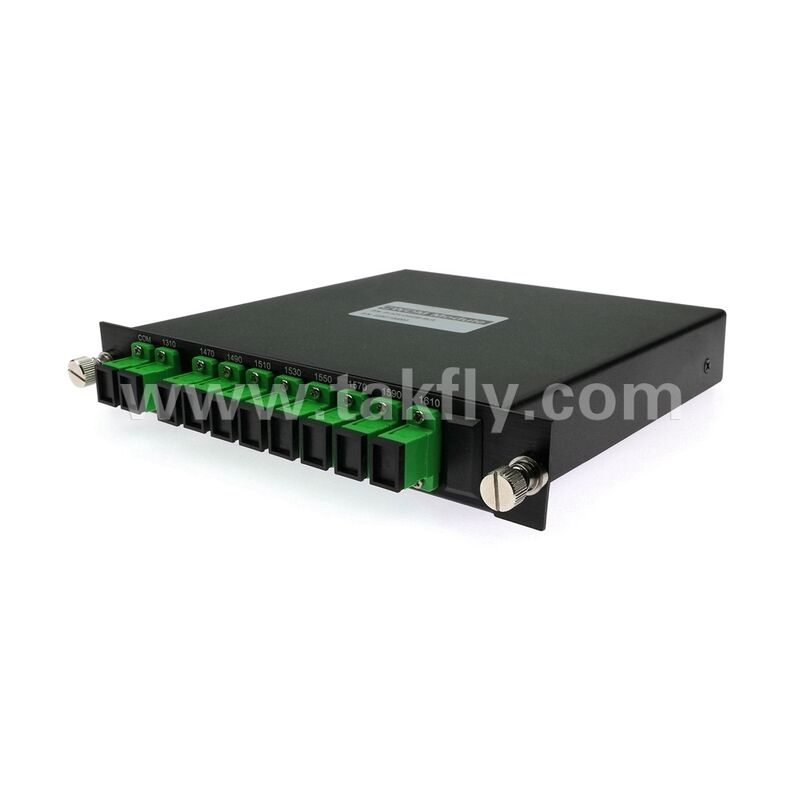

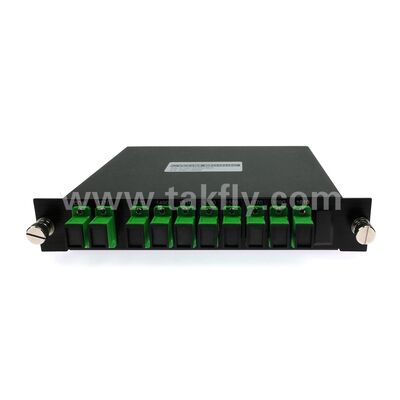

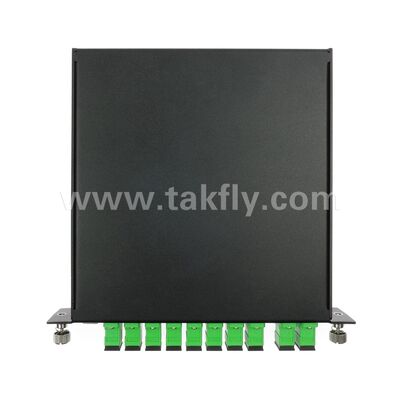

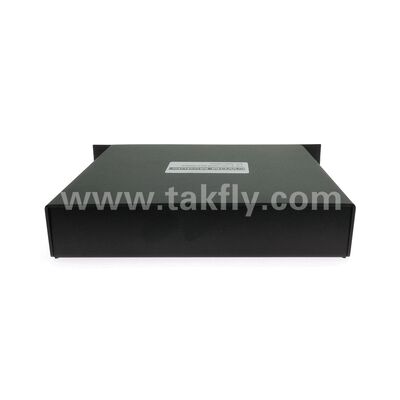

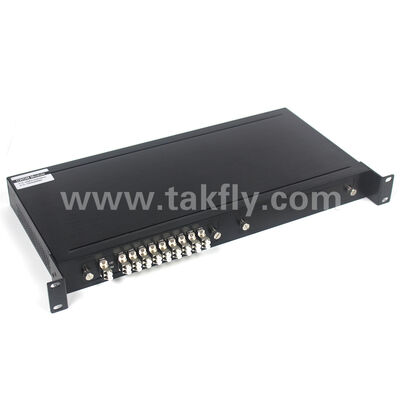

Fiber Optic CWDM 8+1Channel MUX+DEMUX LGX Module for Data Center FTTX
Produktdetails:
| Herkunftsort: | China |
| Markenname: | OEM |
| Zertifizierung: | ISO, CE RoHS |
| Modellnummer: | DF-LGX- 8+1 CWDM |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | USD39-49/pc |
| Verpackung Informationen: | KARTON |
| Lieferzeit: | 5-8 Werktage |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 50000 Stück pro Monat |
|
Detailinformationen |
|||
| Fasertyp: | SMF-28e | ||
|---|---|---|---|
| Hervorheben: | Fiber Optic CWDM MUX DEMUX module,8+1 channel WDM LGX module,CWDM module for data center |
||
Produkt-Beschreibung
Fiber Optic CWDM 8+1 Channel MUX+DEMUX LGX Module for Data Center FTTX
8+1 Channel CWDM MUX+DEMUX LGX Module
Takfly's CWDM Mux & Demux LGX module utilizes wavelength division multiplexing technology based on TFF (thin film filter), offering multiple wavelength options. This technology multiplexes optical signals of different wavelengths into a single fiber for transmission and demultiplexes them into separate wavelength signals at the receiver end. CWDM has established an important position in the access layer of Metropolitan Area Networks due to its wide band capabilities and low system equipment requirements.
Key Features
- Low Insertion Loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
- Epoxy-free on Optical Path
Takfly provides multiple wavelengths and single or dual fiber transmission CWDM MUX+DEMUX modules with optional and customized configurations.
Technical Specifications
| Parameter | Unit | Specifications |
|---|---|---|
| Channel Count | nm | 1470/1490/1510/1530/1550/1570/1590/1610/UPGRADE 1270-1350 |
| Channel Passband | Min | nm ±7.5 |
| Insertion Loss | Max | dB <2.2 |
| Isolation Adjacent Channel | Min | dB 30 |
| Isolation Non-Adjacent Channel | Min | dB 40 |
| Passband Ripple | Max | dB 0.3 |
| Polarization Dependent Loss | Max | dB 0.1 |
| Directivity | Min | dB 55 |
| Return Loss | Min | dB 50 |
| Polarization Mode Dispersion | Max | ps 0.1 |
| Power Handling | Max | mW 500 |
| Pigtail and Connector Type | COM | 0.9/mm black loose tube with connector |
| Other ports | 0.9/mm white loose tube with connector | |
| Fiber Type | SMF-28e | |
| Fiber length | m | ≥1 |
| Operating Temperature | ℃ | -10~70 |
| Storage Temperature | ℃ | -40~85 |
| Package Dimension | mm | LGX Module |
Specifications include connector.
