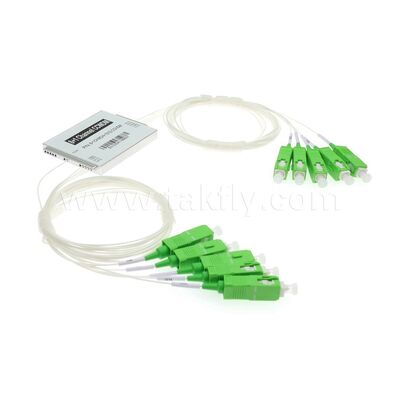

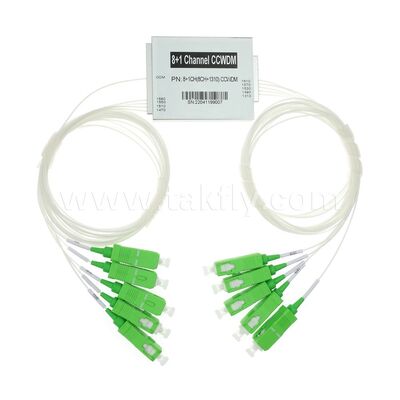

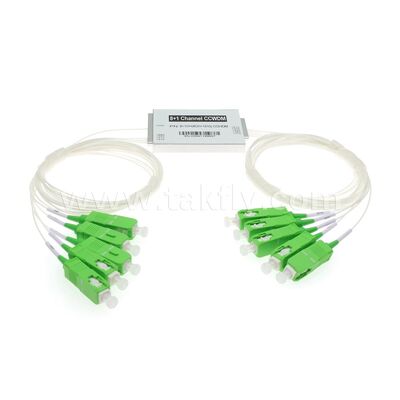

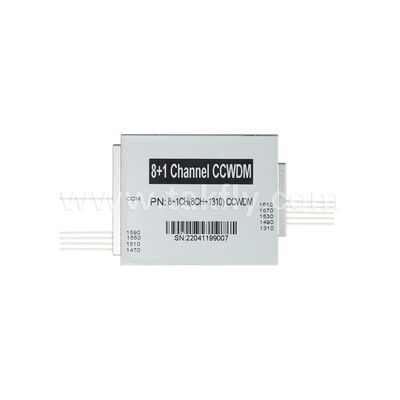

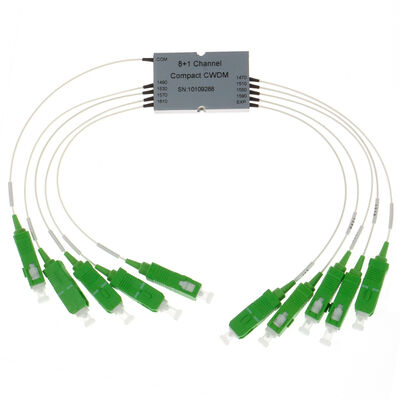

CCWDM 8+1Channel Compact Coarse Wavelength Division Multiplexer G657A1 for Data Center FTTX
Produktdetails:
| Herkunftsort: | China |
| Markenname: | OEM |
| Zertifizierung: | ISO, CE RoHS |
| Modellnummer: | DF-8+1 CCWDM-1 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | USD38-48/pc |
| Verpackung Informationen: | Blisterverpackung + Karton |
| Lieferzeit: | 5-8 Werktage |
| Zahlungsbedingungen: | T/T, Western Union |
| Versorgungsmaterial-Fähigkeit: | 50000 Stück pro Monat |
|
Detailinformationen |
|||
| Steckertyp: | zu entschlossen sein | ||
|---|---|---|---|
| Hervorheben: | CCWDM 8+1Channel WDM Mux Demux,Compact WDM Multiplexer G657A1,Data Center WDM for FTTX |
||
Produkt-Beschreibung
CCWDM 8+1 Channel Compact Coarse Wavelength Division Multiplexer G657A1 for Data Center FTTX
Product Overview
Takfly's compact wavelength division multiplexer/CCWDM module utilizes TFF (thin film filter) based wavelength division multiplexing technology. It operates similarly to CWDM modules, but employs free space technology resulting in a significantly smaller package size, lower insertion loss, and improved consistency.
Key Features
- Low Insertion Loss
- Compact Size
- Ultra Stable and Highly Reliable
- Extended Operating Temperature Available
Free Space Technology
Takfly's CCWDM module employs free space technology with an independent sealed space for optical signal transmission. The optical signal is input/output from the COM port, while other ports transmit light signals through TFF (thin film filter).
Applications
Widely used in telecommunications, enterprise networks, PON networks, cable TV, and other related fields.
Technical Specifications
| Parameter | 4 CH | 4 + UPG | 8 CH | 8 + UPG1 | 8 + UPG2 |
|---|---|---|---|---|---|
| Operating Wavelength (nm) | 1260~1620 | ||||
| Channel Wavelength (nm) | 1270, 1290,..., 1590, 1610, or 1271, 1291,..., 1591, 1611 | ||||
| UPG Port Wavelength Range (nm) | NA | TBD | NA | 1260~1360 | 1260~1457 |
| Channel Spacing (nm) | 20 | ||||
| Channel Passband (nm) | CWL+/-6.5nm | ||||
| Insertion Loss (dB)* | ≤0.8 | ≤0.8 | ≤1.4 | ≤1.4 | ≤1.7 |
| Channel Ripple (dB) | ≤0.3 | ||||
| Isolation (dB) Adjacent | >30 | ||||
| Isolation (dB) Non-adjacent | >40 | ||||
| UPG Isolation (dB) | NA | >15 | NA | >15 | >15 |
| Polarization Mode Dispersion (PS) | ≤0.2 | ||||
| Polarization Dependent Loss (dB) | ≤0.2 | ||||
| Directivity (dB) | >45 | ||||
| Return Loss (dB) | >45 | ||||
| Maximum Power Handling (mW) | 500 | ||||
| Operating Temperature (℃) | -5~+70 | ||||
| Storage Temperature (℃) | -40~85 | ||||
| Fiber Type | G657A1 | ||||
| Connector | TBD | ||||
| Package dimension (mm) | L55 x W45 x H6 or L44 x W25 x H6 | ||||
* Insertion loss values vary by configuration
