FTTH 2.0*3.0mm Transparent Invisible Indoor Fiber Optic Patchcord SCAPC to SCAPC with G657A Fiber
Produktdetails:
| Herkunftsort: | China |
| Markenname: | DF/OEM/Nuetral |
| Zertifizierung: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Modellnummer: | TK-TI-PC--SA-AS-2.0x3.0-PVC-XXX |
Zahlung und Versand AGB:
| Min Bestellmenge: | 100 Stück |
|---|---|
| Preis: | US$0.01~4.69/PC |
| Verpackung Informationen: | Standardverpackung exportieren |
| Lieferzeit: | 5-9 Arbeitstage abhängig von der QTY |
| Zahlungsbedingungen: | Western Union,T/T,MoneyGram/Paypal |
| Versorgungsmaterial-Fähigkeit: | 5000 Prozent/Tag |
|
Detailinformationen |
|||
| Produktname: | FTTH 2,0 * 3,0 mm transparentes unsichtbares Glasfaser-Patchkabel für den Innenbereich SCAPC zu SCAP | Interaktionsverlust: | ≤0,3 dB |
|---|---|---|---|
| Rückflussverlust: | APC SM ≥ 60 dB | Fasertyp: | Die in Absatz 1 genannten Anforderungen gelten für die in Absatz 1 genannten Fahrzeuge. |
| Durchmesser: | 2.0*3.0mm | Steckertyp: | APC |
| Jackenmaterial: | PVC | Farbe: | Transparent |
| Wellenlänge: | 1310nm, 1550nm | Länge: | 3m oder besonders angefertigt |
| Betriebstemperatur: | -20℃~70℃ | Faserdurchmesser: | 9/125 |
| Grad: | Telekommunikationsstufe | Zertifikat: | CE/ROHS/REACH |
| Produktionskapazität: | 10000 Stück/Tag | ||
| Hervorheben: | 2.0*3.0mm Fiber Optic Patchcord,Transparent Invisible FTTH Drop Cable,G657A1 SCAPC Patchcord |
||
Produkt-Beschreibung

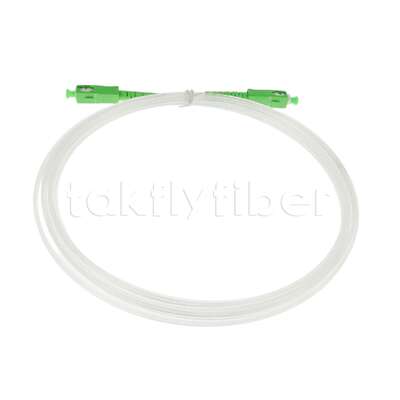

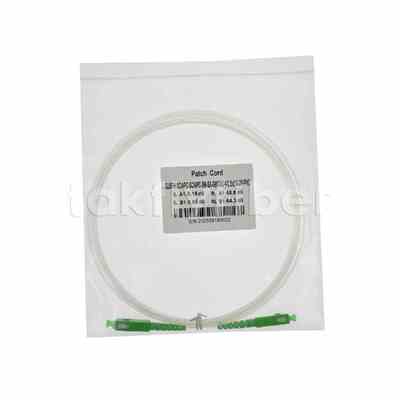

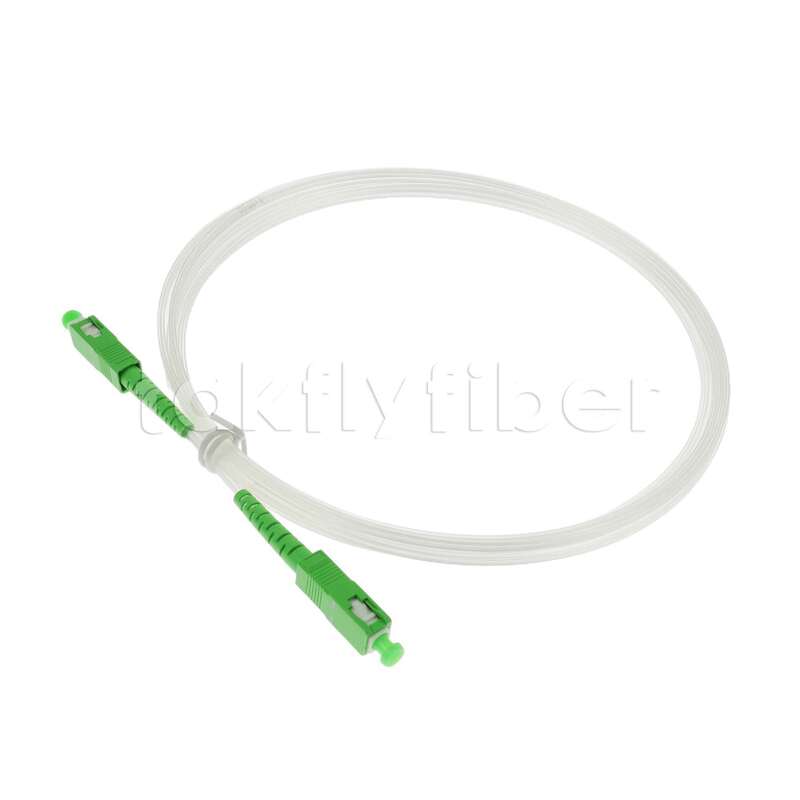

FTTH 2.0*3.0mm Transparent Invisible Indoor Fiber Optic Patchcord SC/APC to SC/APC
Takfly FTTH 2.0*3.0mm Transparent Invisible Indoor Fiber Optic Patchcord features a 2.0*3.0mm LSZH cable with SC/APC to SC/APC connectors, designed for high-performance, low-loss single-mode fiber connections. These pre-terminated, rugged assemblies offer 1 fiber count and undergo 100% factory inspection.
Product Specifications
Fiber Optic Attributes
- Mode field diameter: 8.6μm ±0.4μm at 1310nm
- Cladding diameter: 125.0μm ±0.7μm
- Coating diameter: 245μm ±10μm
- Coating-cladding concentricity error: ≤12.5μm
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310≤0.4dB, 1550≤0.3dB
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1/SM G657A2/G657B3
- Strength member material: FRP
- Diameter: 0.5mm*2
- Outer sheath material: LSZH Black
- Cable size: 2.0*3.0mm
Connector Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km*L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability (1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 70N |
Optical Fiber Performance
| Parameter | Long Term | Short Term |
|---|---|---|
| Tensile strength (N) | 40 | 80 |
| Crush load (N) | 500 | 1000 |
| Wavelength (nm) | 1310/1550 | |
| Attenuation (dB) | 0.4/0.3 | |
| Cladding diameter (μm) | 125±1 | |
| Cladding non-circularity | ≤1.0% | |
| Coating diameter (μm) | 242±7 | |
Detailed Parameters
| NO. | Item | Unit | Specification (SM G657A2) |
|---|---|---|---|
| 1 | Mode Field Diameter | 1310nm: μm 1550nm: μm | 8.2~9.0 9.1~10.1 |
| 2 | Cladding Diameter | μm | 125±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12 |
| 8 | Cable Cutoff Wavelength | nm | λcc ≤1260 |
| 9 | Attenuation (Max) | 1310nm: dB/KM 1550nm: dB/KM | ≤0.36 ≤0.25 |
| 10 | Macro-Bending Loss | 1 Turn x 7.5mm radius@1550nm: dB 1 Turn x 7.5mm radius@1265nm: dB | ≤0.08 ≤0.25 |
Applications
- FTTR (Fiber to the Room): Enables seamless fiber connectivity in residential or commercial indoor environments
- Indoor Optical Networks: Ideal for high-speed data transmission with minimal visibility impact
- Telecom Systems: Reliable connectivity for LAN, WAN, and metro networks
- Smart Homes: Supports modern home networks requiring aesthetically pleasing and high-performance cabling
- Enterprise Networking: Suitable for discreet indoor installations in offices and business centers
Key Features
- Invisible Fiber Design: 2.0*3.0mm cable with transparent finish blends into surroundings for discreet indoor use
- High-Performance SC/APC Connectors: Ensures low insertion loss and high return loss for stable signal transmission
- Compact and Flexible: Easy to route around corners, walls, and ceilings without affecting performance
- Low Bend Sensitivity: Built with G.657A2/B3 fiber for excellent bend performance and durability
With more than 10 years of sales experience and shipping experience in optical fiber products, we have helped more than 127 customers to expand their business and increase sales. We provide professional guidance to help you save time and money while increasing your sales.
