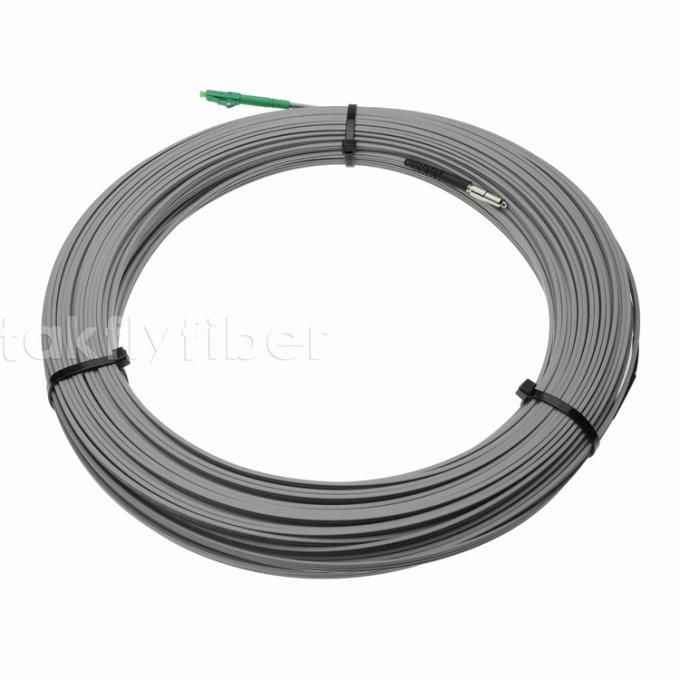

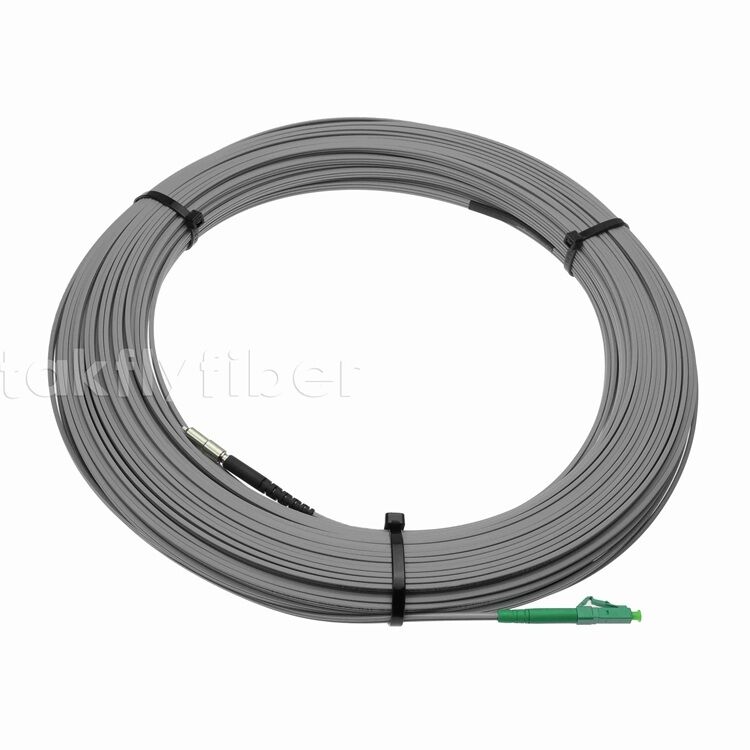

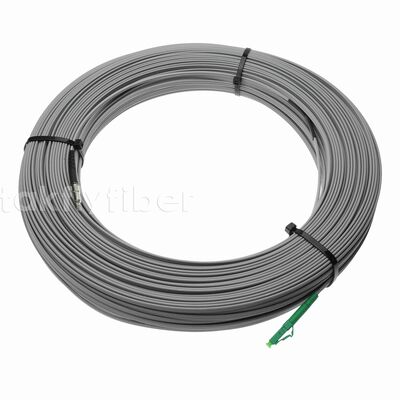

2.0*5.2mm Pullable Bullet SCAPC to SC/APC FTTH Drop Cable Fiber Optic Patchcord SM G657A2

Takfly Bullet Pushable cable assemblies offer a flexible, pushable pre-terminated fiber optic drop solution for fast and reliable FTTX deployments. The bullet pushable connector enables the pre-connectorized cable to be installed through microducts and small holes that are typical of most FTTX scenarios. This cable can be installed without using large conduits or drilling big holes through the customer's wall.

This bullet Pushable assembly can be successfully pushed through small holes and microduct. Hand push distances vary according to bend frequency and duct quality. The rugged round drop cable with the pushable pre-terminated connector reduces the cost of fiber deployments as well as the intrinsic skill and difficulty of handling and connecting customer drop cables.

• Mode field diameter: 8.6μm ± 0.4μm at 1310nm
• Cladding diameter: 125.0μm ± 0.7μm
• Coating diameter: 245μm ± 10μm
• Coating-cladding concentricity error: ≤ 12.5μm
• Cut-off wavelength: ≤ 1260nm
• Attenuation coefficient: 1310 ≤ 0.4dB, 1550 ≤ 0.3dB

• Number of fiber: 1 core
• Fiber type: G657A1
• Strength member material: FRP
• Diameter: 0.5mm × 2
• Self-support messenger wire: Steel wire, 1.0mm diameter
• Outer sheath: LSZH Black
• Cable size: 5.0 × 2.0mm

• CATV
• Telecommunication networks
• Active device termination
• Local area networks (LANS)
• Data processing networks
• Test equipment
• Wide area networks (WANS)

• Low insertion loss and High reflection loss
• Good exchange ability
• Good durability
• High temperature stability
• Standard: Telcordia GR-326-CORE
