48 Core Fiber Optic Patch Cord with Low Insertion Loss and High Temperature Stability for Data Centers
Produktdetails:
| Markenname: | TK/DF/Neutral |
| Zertifizierung: | CE, ROHS, REACH, CPR EN50575 |
| Modellnummer: | TK-48F-PC-LA-LA-XXXM |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | US$0.01~US$49.99 |
| Verpackung Informationen: | Standard-Exportverpackung |
| Lieferzeit: | 7-9 Werktage |
| Zahlungsbedingungen: | T/T, Western Union, Paypal, l/c |
| Versorgungsmaterial-Fähigkeit: | 10000 Stück pro Woche |
|
Detailinformationen |
|||
| Fasermarke: | Corning, YOFC, OFS, Draka, HT | Länge: | 20 m oder angepasst |
|---|---|---|---|
| Produktname: | LWL-Patchkabel | Faserdurchmesser: | 9/125 μm |
| Kabeltyp: | Einzelmodus oder Multimode | Vibration: | ≤0,2 dB |
| Steckertyp: | LC/APC, LC/UPC | Mantel: | LSZH |
| Betriebstemperatur: | -20 ~ +65 °C | Kabelmaterial: | LSZH/PVC |
| Steckerfarbe: | Grün/Blau/Beige/Aqua/Magenta | Anwendung: | Telekommunikation, Rechenzentren, CATV, LAN |
| Einfügedämpfung: | <= 0,3 dB | Transportpaket: | Schleife |
| Einhaltung von Standards: | CE, ROHS, REACH, ISO9001 und ISO14001 | ||
| Hervorheben: | 48 core fiber optic patch cord,low insertion loss fiber patchcord,high temperature stable fiber optic cable |
||
Produkt-Beschreibung

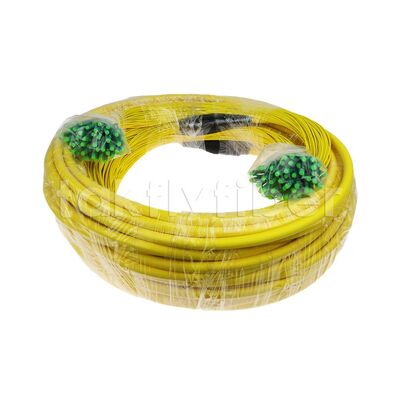

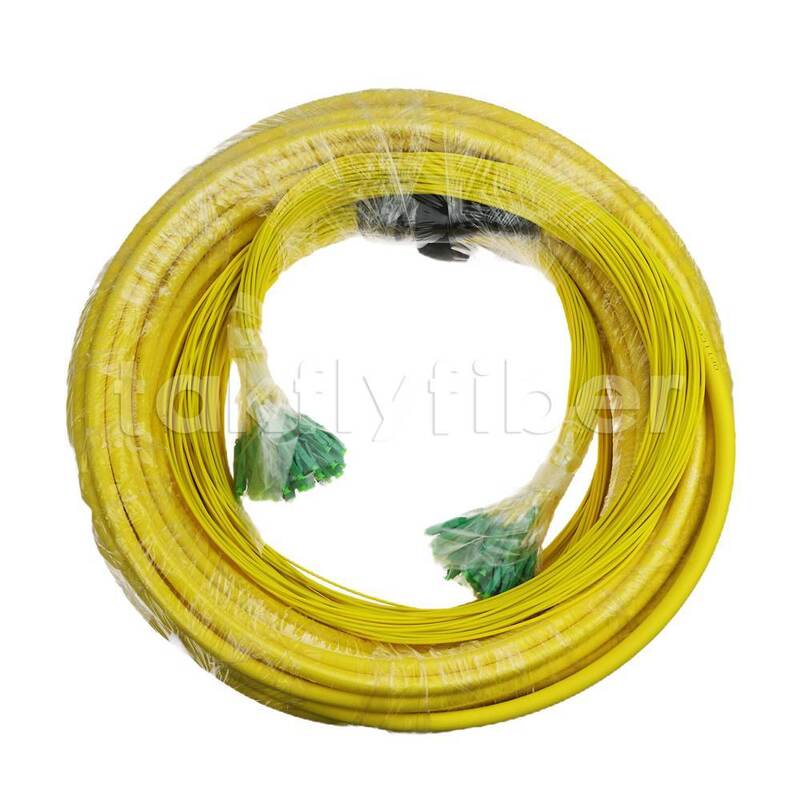

48 Core Fiber Optic Distribution Breakout Patch Cord
Product Description
48 Core Fiber Optic Distribution Breakout Patch Cord designed for high-performance fiber optic connectivity applications.
Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Technical Specifications
| Parameter | Specification |
|---|---|
| Connector Type | LC |
| End face type | APC |
| Fiber Type | SM G652D, SM G657A1, SM G657A2 |
| Cable Diameter | 10.5mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM ≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | LSZH |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 10M, 20M, 50M, 100M or customized |
| Fanout Length | 0.5M, 1M or customized |
| Fanout Diameter | 2.0mm |
How to Order
Specify the following parameters when ordering:
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (can customize other diameters)
- Coating material: PVC / LSZH
- Fiber count: simple / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core and more
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirement
- For MPO/MTP connectors: specify method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32/48/72/96/144/288 fiber)
With over 10 years of experience in this field, we provide professional service and technical expertise.
If you're interested in our products or have any questions, please contact us for more information.
