SC/APC-SC/APC Drop Cable Patchcord,SM G657A1 ,2.0*5.2mm, LSZH Black Jacket
Produktdetails:
| Herkunftsort: | China |
| Markenname: | Takfly |
| Modellnummer: | SM G657A1 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 1 |
|---|---|
| Preis: | US$0.5-US$100 |
| Lieferzeit: | 3-12 Arbeitstage |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 30000/Mo |
|
Detailinformationen |
|||
| Hervorheben: | SC/APC fiber optic patchcord G657A1,LSZH fiber optic drop cable,2.0mm SC/APC patchcord with warranty |
||
|---|---|---|---|
Produkt-Beschreibung
SC/APC-SC/APC Drop Cable Patchcord
SM G657A1, 2.0×5.2mm, LSZH Black Jacket
Product Overview
This Fast Connect drop cable features an anti-vibration design that enables plug-and-play installation without splicing. This design facilitates rapid deployment, reduces installation time, and ensures high network reliability and durability.
Outline Drawing
- Dust cap
- Connector SC/APC SM
- SM G657A1 FTTH Drop Cable, Gray, LSZH cable
Fiber Optic Specifications
- Mode field diameter: 8.6μm ± 0.4μm at 1310nm
- Cladding diameter: 125.0μm ± 0.7μm
- Coating diameter: 245μm ± 10μm
- Coating-cladding concentricity error: ≤ 12.5μm
- Cut-off wavelength: ≤ 1260nm
- Attenuation coefficient: 1310 ≤ 0.4dB, 1550 ≤ 0.3dB
FTTH Cable Construction
Cable Structure
- Number of fiber: 1 core
- Fiber type: G657A1
- Strength member material: Steel wire
- Diameter: 0.45mm × 2
Self-Support Messenger Wire
- Material: Steel wire
- Diameter: 1.2mm
Outer Sheath
- Material: LSZH Black
- Cable size: 5.0 × 2.0mm
Connector Performance Specifications
| Parameter | Specifications |
|---|---|
| Type | SC/APC (1310) |
| Insertion Loss | ≤ 0.3 dB + 0.36 dB/km × L(km) @ 1310nm ≤ 0.3 dB + 0.25 dB/km × L(km) @ 1550nm |
| Return Loss | ≥ 60dB |
| Endface | IEC 61300-3-35 |
| Durability (1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃ to +60℃ |
| Operating Temperature | -25℃ to +70℃ |
| Storage Temperature | -40℃ to +75℃ |
| Cable Pull | 90N |
Optical Fiber Mechanical Performance
| Parameter | Long Term | Short Term |
|---|---|---|
| Tensile Strength | 300 N | 600 N |
| Crush Load | 1100 N | 2200 N |
| Wavelength (nm) | 1310/1550 | |
| Attenuation (dB) | 0.4/0.3 | |
| Cladding Diameter (μm) | 125 ± 1 | |
| Cladding Non-Circularity | ≤ 1.0% | |
| Coating Diameter (μm) | 242 ± 7 | |
Schematic Drawing

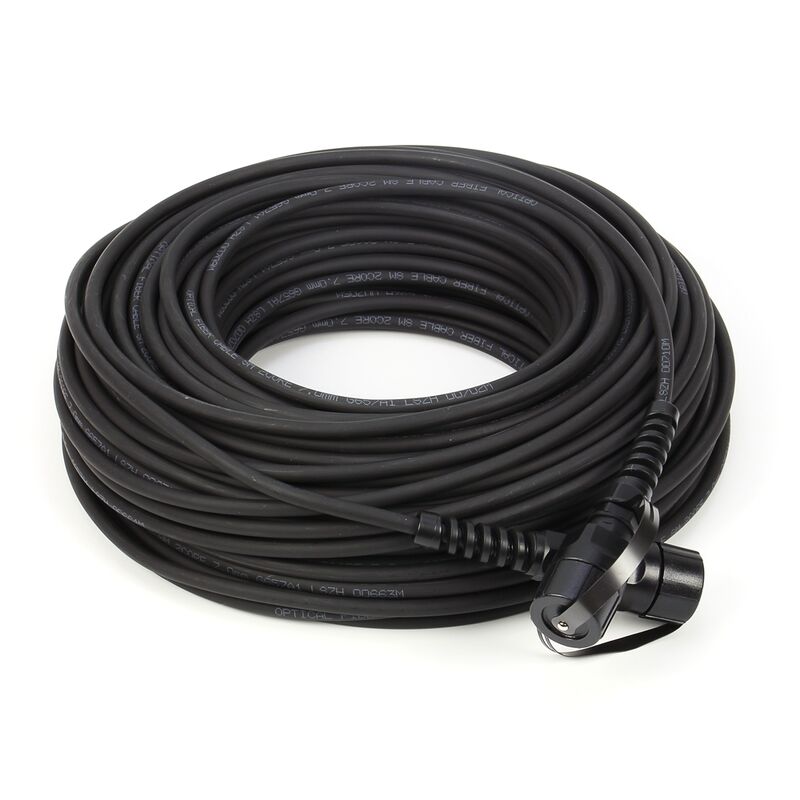

Product Images

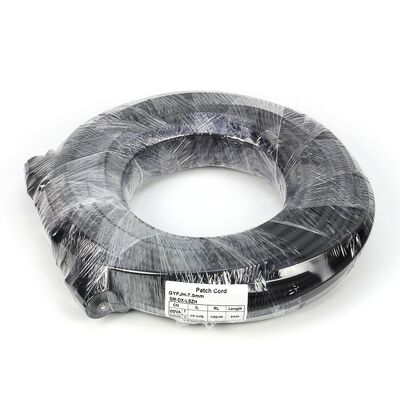

Packaging
Products are packaged using stretch film packaging as shown below:
