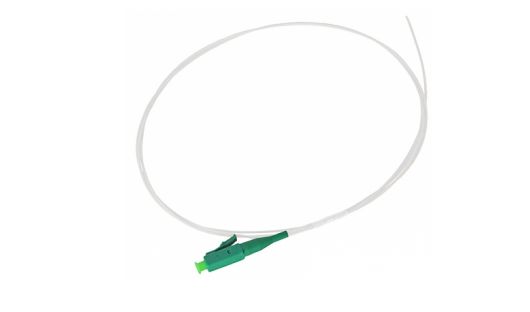

LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
Produktdetails:
| Herkunftsort: | China |
| Markenname: | DF/OEM/Nuetral |
| Zertifizierung: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Modellnummer: | TK-SC/UPC 0,9 mm |
Zahlung und Versand AGB:
| Min Bestellmenge: | Verhandelbar |
|---|---|
| Preis: | negotiable denpend on QTY |
| Verpackung Informationen: | Blisterbox+Karton |
| Lieferzeit: | 5-9 Arbeitstage abhängig von der QTY |
| Zahlungsbedingungen: | Western Union,T/T,MoneyGram/Paypal |
| Versorgungsmaterial-Fähigkeit: | 1000 Prozent/Tag |
|
Detailinformationen |
|||
| Produktname: | LC Simplex 0,9mm Glasfaser-Schweinenschwanz | Interaktionsverlust: | ≤0,3 dB |
|---|---|---|---|
| Renditeverlust: | APC SM≥ 60 dB | Fasertyp: | SM G657A1 |
| Durchmesser: | 0,9 mm | Anschlusstyp: | LC/APC |
| Mantelmaterial: | LSZH/PVC/PU | Farbe: | Orange oder angepasst |
| Wellenlänge: | 1310 nm, 850 nm | Länge: | 30cm oder besonders angefertigt |
| Betriebstemperatur: | -20 ℃ ~ 70 ℃ | Faserdurchmesser: | 50/125 |
| Grad: | Telekommunikationsstufe | Zertifikat: | CE/ROHS/REACH |
| Hervorheben: | 0.9mm simplex fiber optic pigtail,APC connector fiber optic pigtail,G657A1 single mode pigtail |
||
Produkt-Beschreibung
LC Simplex 0.9mm Fiber Optic Pigtail APC SM G657A1
Application
- CATV
- Telecommunication Networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
Specifications
| End face type | APC |
|---|---|
| Fiber type | SM G657A1 |
| Cable Diameter | 0.9mm |
| Insertion loss | ≤ 0.3 dB |
| Return loss | APC SM≥60dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | Hytrel |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | 30cm or Customized |
| Packing | 12PCS 0.9mm color pigtails in one set |
Why choose TAKFLY - Advantages
Professional manufacturer
- With more than 25 years manufacturing experience in Fiber optic products
- More than 500 assembly workers with 5 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL & RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
