LC Quad Fiber Optic Adapter Singlemode Multimode APC UPC
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | OEM |
| Zertifizierung: | CE/REACH/RoHS |
| Modellnummer: | TK-FOA-LCD-888 |
Zahlung und Versand AGB:
| Min Bestellmenge: | 100 |
|---|---|
| Preis: | 0.50USD |
| Verpackung Informationen: | Karton 55*40*35cm |
| Lieferzeit: | 3 bis 5 Tage |
| Zahlungsbedingungen: | T/T, Western Union, Moneygram |
| Versorgungsmaterial-Fähigkeit: | 100000/WEEK |
|
Detailinformationen |
|||
| Verlust der Einfügung: | ≤ 0,2 dB | Faserzahl: | Qaud |
|---|---|---|---|
| Farbe: | Blau/Aqua/Rose/Grün/Beige/Limmgrün | Betriebstemperatur: | -40°C bis 85°C |
| Hervorheben: | LC duplex fiber adapter single mode,fiber optic adapter APC UPC,single mode LC duplex adapter |
||
Produkt-Beschreibung

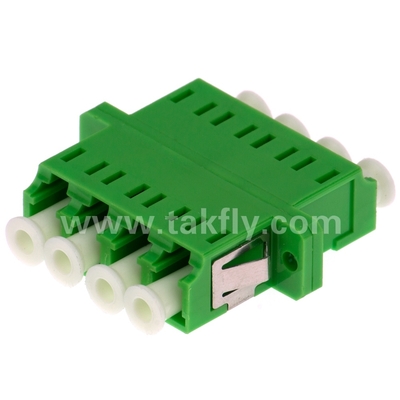

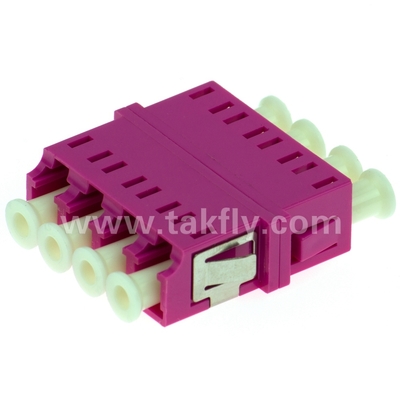

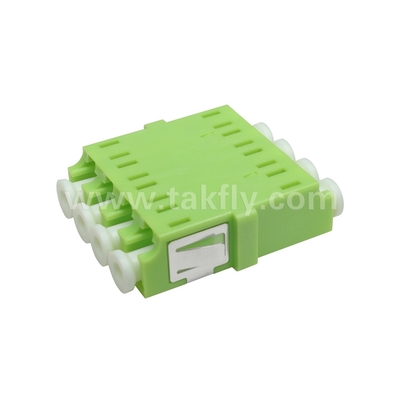

LC Quad Fiber Optic Adapter Singlemode Multimode APC UPC
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Quad |
| Color | Blue/Aqua/Rose/Green/Beige/Lime green |
| Operating temperature | -40~85℃ |
Product Description
The LC Quad Fiber Optic Adapter is designed for connecting fiber optic connectors, efficiently coupling output power from transmitting fiber to receiving fiber. It serves as a reliable solution for cable-to-cable or cable-to-equipment connections in various network configurations.
Key Features
- Single mode and Multimode compatibility
- Zirconia sleeves or Phosphor bronze sleeves
- NTT standard compatible
- Patch panel mount applications
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All parts compliant with ROHS
Technical Specifications
| Product | LC Adapter |
|---|---|
| Mode | SM | MM |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability (500 times) | Additional Loss ≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss ≤0.2dB |
| Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ |
TAKFLY LC adapters feature easy installation, low insertion loss, excellent interchangeability, and superior resistance to both high and low temperatures.
